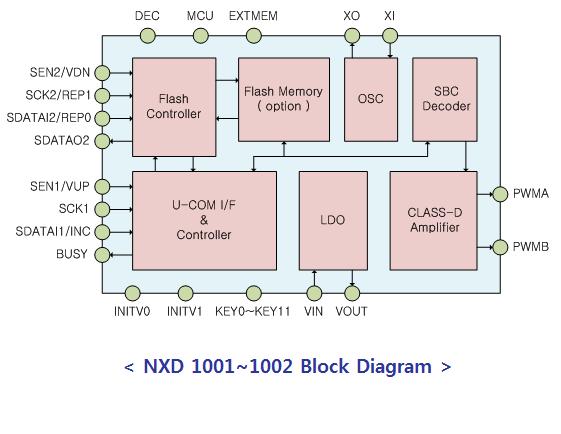

1. NXD 1001/1002 Feature
|
 |
|
  |

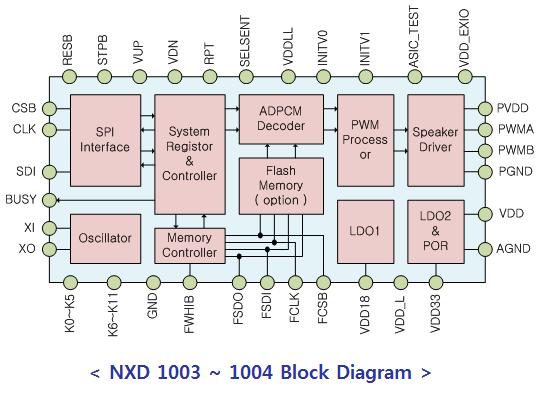

1. NXD 1003/1004 Feature. Supply voltage : 2.8V ~ 5.5V . 16bits operation in ADPCM Decoder . Stand alone / SPI control interface . Program play : Selectable Phrase play or Sentence play . Direct play : PCM or ADPCM input . Non-Encoded data can be saved in the Internal / external flash memory for high quality . Direct internal/external serial flash memory access . Direct speaker drive with internal Digital amplifier 600mW @ 8ohm, THD=10% ( VCC=3.3V ) 1.5W @ 8ohm, THD=10% ( VCC=5.5V ) . X-tal oscillator or Passive ring oscillator : Master clock Frequency is 16.384MHz or 32.768MHz . Maximum 36 keys(matrix structure) at stand alone mode . Auto power save mode for very long battery life time . Sampling rate : 4, 8, 16KHz / 8, 16 32KHz(X-tal : 16.384MHz / 32.768MHz) . Maximum play time (@internal 8M, 4K Sampling rate) : 500sec . Built in 2 Low Dropout Regulators for internal/external flash or u-com . Built in Power on reset . Auto stand-by : under 0.1uA when no key action . A few external parts . Package : 44QFP |
[NXD1003_4 - Busy Active High]  [NXD1003_4A - Busy Active Low] |
|
 |
|

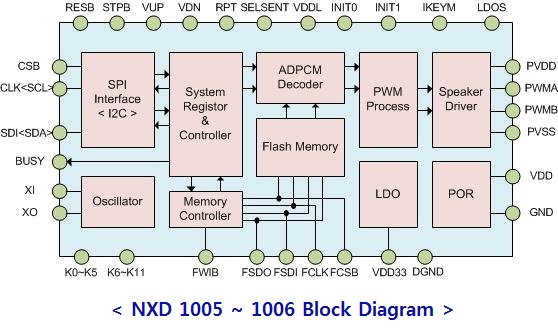

1. NXD 1005/1006 Feature. Supply voltage : 2.8V ~ 5.5V . 16bits operation in ADPCM Decoder . Stand alone / SPI control interface . Program play : Selectable Phrase play or Sentence play . Direct play : PCM or ADPCM input . Non-Encoded data can be saved in the Internal / external flash memory for high quality . Direct internal/external serial flash memory access . Direct speaker drive with internal Digital amplifier 600mW @ 8ohm, THD=10% ( VCC=3.3V ) 1.5W @ 8ohm, THD=10% ( VCC=5.5V ) . X-tal oscillator or Passive ring oscillator : Master clock Frequency is 16.384MHz or 32.768MHz . Maximum 36 keys(matrix structure) at stand alone mode . Auto power save mode for very long battery life time . Sampling rate : 4, 8, 16KHz / 8, 16 32KHz(X-tal : 16.384MHz / 32.768MHz) . Maximum play time (@internal 8M, 4K Sampling rate) : 500sec . Built ina Low Dropout Regulator . Built in Power on reset . Auto stand-by : under 0.1uA when no key action . A few external parts . Package : 44QFP |
|
| Data Sheet |
|
 |
|
