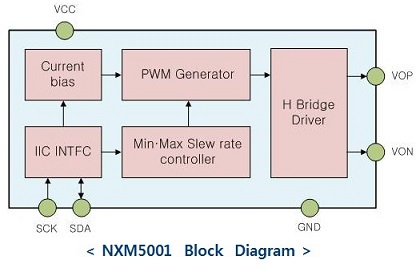

1. NXM 5001 Feature


. Supply voltage : 2.5V ~ 3.6V
. OutputOn resistance :PMOS & NMOS 0.8ohm
. Grounded currentwithoutLoad :1.2mA @2.7MHz
. PWM Frequency :1.1MHz/1.5MHz/1.8MHz/2.7MHz
. Selectable Min to MaxDutyslew rate :0/40ms/100ms/200ms @Min Duty¡ç¡æ Maxduty
. Package :1.47m*0.78m 6pin WLP
Data Sheet

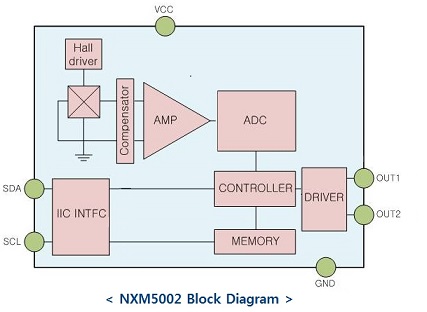

2. NXM 5002 Feature


. Supply voltage : 2.4V ~ 3.6V
. IIC Interface : standard/fast mode
                            Default Slave address E0/E1 (W/R), Slave address settable
. Embedded Hall sensor
. Self Auto-calibration with only one IIC command
. High speed non-volatile memory
           User free access : 96Byte
                        Speed of write only (max) : 400KHz (IIC bus speed)
                        Store (write complete) time (max) : 28mS
                           ¡ç One time Store automatically,
                                after full (selected) byte write
                        Speed of read (max) : 400KHz (IIC bus speed)
                        Time of immediately Read after write (max) : 28mS
. 10bit PID controller
. Position command bit : 10bit resolution
. High accuracy position sensing
. Rotation movement error cancelation
. H bridged power out
. Power down mode
  ( Mass Product only, ES sample does not support this function )
. Hall sensor position output : 10bit
. FRA (Frequency Response Analysis) Function is supported
. Package : 6-pin WL-CSP
Data Sheet

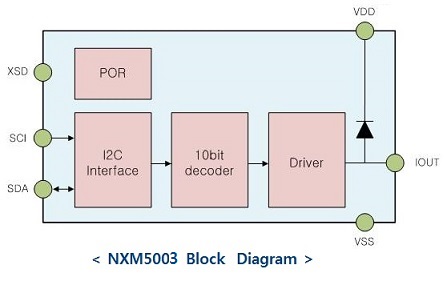

3. NXM 5003 Feature


. Supply voltage : 2.3V ~ 3.6V
. VCM driver for auto-focus
. 10bit decoder
. 120mA output current sink capability
. VCM move time control
. Fast mode I2C interface (1.8V interface available)
. Power on reset (POR)
. Package : 0.7mm(W) X 1.1mm(H) 6pin-WLP
Data Sheet

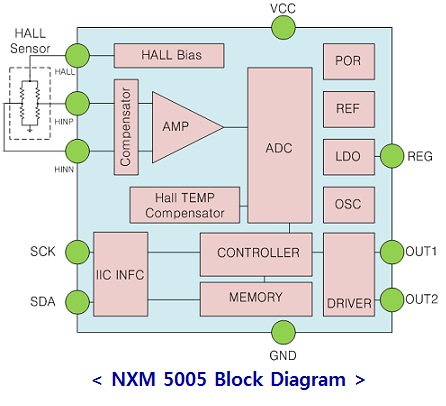

4. NXM 5005 Feature


. Supply voltage : 1.8V ~ 3.6V
. IIC Interface : standard/fast mode
         Default Slave address E0/E1 (W/R),
         Slave address can be set
. External Hall sensor
. Self Auto-calibration with only one IIC command
. High speed non-volatile memory
        User free access : 96Byte
          Speed of write and read command (max) : 2.0MHz
          (IIC bus speed)
          EEPROM Store time (max) : 15ms
          EEPROM Read time : immediately
. PID controller
. Position command bit : 10bit resolution
. High accuracy position sensing
. Rotation movement error cancelation
. H bridged power out
. Power down mode
 ( Mass Product only, ES sample does not support this function )
. Hall sensor position output : 10bit
. FRA ( Frequency Response Analysis ) Function is supported
. Package : 10-pin WLCSP
Data Sheet
